Branches

The central object type of Lakat is the branch. See the Schematic below for an illustration. Branches represent journals or research communities. They share some properties with git-branches and some with blockchains. Every branch contains an id, called branchID, that uniquely identifies it. The immutable entries of a branch and the initial head are hashed to produce the branch identifier. The branch also points to a parent branch from which it originated. This entry may however be empty for a certain type of branch, namely the sprout (see below). The corresponding entry is called parentBranch. This construction turns the set of branches into a linked data structure. In git a branch is simply a pointer to the head commit. In blockchains one often encounters ids attached to the chain (so-called chainid) to avoid issues when the consensus mechanism yields two different chains. At creation time the branch receives a timestamp. The previous entries are all immutable. There are then four mutable entries, namely stableHead, then the two consensus entries sprouts and sproutSelection and finally branchToken. The stable head is a pointer to the latest stable submit. A submit is a set of changes (see submits). One may think of it as the Lakat version of an article submission. It has similarities to a commit in git – not only phonetically – but also to a block in ethereum. The addition of new submits works through a consensus mechanism called proof of review (PoR) and lignification (see Lignification). Also in this respect the branch behaves a lot like a blockchain. Every branch has it’s own token, the branchToken. It allows funding bodies to fund a particular branch. Token logic is not handled by Lakat. Instead this entry essentially points to proofs of transactions on a blockchain where the respective token lives. The purpose of the integration of tokens is to create an incentive layer on top of Lakat, because (unfortunately) humans as well as AI do not work without incentives. The branch also carries configuration metadata, stored in branchConfig. It points to information about the branch type, whether merge conflicts are accepted , the consensus rules and the proofs that are accepted, such as proofs of token transfer or proofs of time. We use timestamps from latest blocks on various blockchains as proofs of time (see opentimestamps.org). The branchConfig’s mutability is more constrained than that of the stable head. Finally, we envision a way to extend the config schema. This would be done by an additional entry that points to a schema bucket, where the schema for the config is defined. An empty entry would signify the use of the default schema. There are three types of branches: proper branches, sprouts and twigs. The branch type is stored in the branch config and can be changed under certain conditions. Proper branches can only be modified through the local consensus mechanism (see Proof of Review). They point to a set of sprouts, which helps with the process of producing stable heads in the proper branch. Proper branches cannot be changed to any other branch type. A sprout is a short-lived branch that is solely used to grow proper branches. Sprouts behave a bit like ommers in the ethereum protocol in the sense that they are contestants to produce the next stable head. They do not have an empty parent branch entry. Sprout branches point to an empty set of sprouts themselves. The sproutSelection contains all the sprouts that are rooted in it. The branchToken entry is empty. The stableHead is immutable. There is only one way to modify the sprout, namely indirectly when it turns into a proper branch during the lignification process (See Lignification). Once a sprout turns into a proper branch the parent branch entry is filled with the id of the branch that it is rooted in. Finally, a twig can be thought of as a little feature branch. Twigs can be modified through submits by contributors of the twig (see Branch contributors) or through merges. However, the process of merging into a twig does not need to go through the consensus mechanism of proper branches (See Branches).

We distinguish between core and belt branches, which correspond to this and other in git. These are not intrinsic properties of branches, but denote the role they play during a merge. Lakat only has one type of merge. The core branch will be updated and the belt branch will not. A branch may be a core with respect to one merge and a belt with respect to another merge. This terminology originates in the core-belt dichotomy of Lakatosian research programmes. There is a further distinction that is purely conceptual and is not manifested in the technical specification, but in the nomenclature. We distinguish a derived branch from a seedling branch in that the seedling branch has a singularity submit without a parent (See Submits). A singularity submit corresponds to the genesis block in a blockchain. We invoke here a cosmological metaphor rather than a biblical one. The seedling branch has no parent branch and the corresponding entry points to zero. A derived branch on the other hand has a parent branch that it points to. We say that the derived branch is rooted in the parent branch. The root of a derived branch is the last submit in the submit history that is also in the history of the parent branch. We also note that there are various levels at which Lakat can be viewed as a graph, going from high level to low level. At the level of the branches one can form a graph B, where a branch is a node and a directed link from one branch A to another branch B means that B is the parent of A or that B is merged into A. This directed graph is not necessarily a-cyclic, because A can be rooted in B and merge back into B, however if one excludes merges it is. At the level of the submits, a graph S can be created with the submits being nodes and a link can be drawn from a submit q to p when p is the parent of q. This yields a directed acyclic graph (DAG). Finally at the level of the data buckets there exists a graph structure D induced by the parent reference inside the bucket. There is a graph homomorphism from S to B, but not vice versa and there are no homomorphisms between S and D or B and D. The lack of a homomorphism between the submit structure and the data structure indicates that these are two separate layers. The relation between the elementary bucket object and the higher level branch object is not simply a many-to-one relation. Different branches may share some data buckets. In practice one would expect that most of the data inside a branch is shared with at least one other branch.

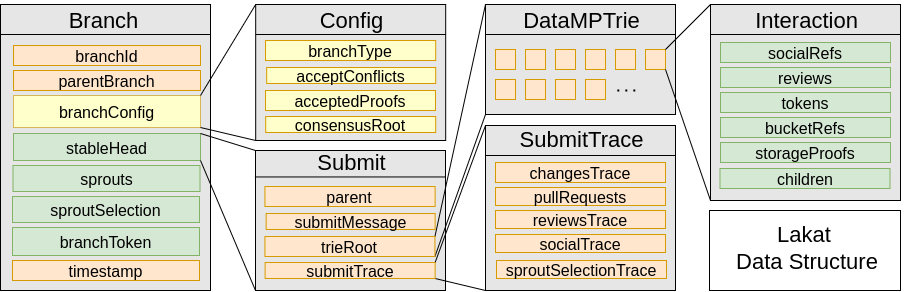

Branch Schema
